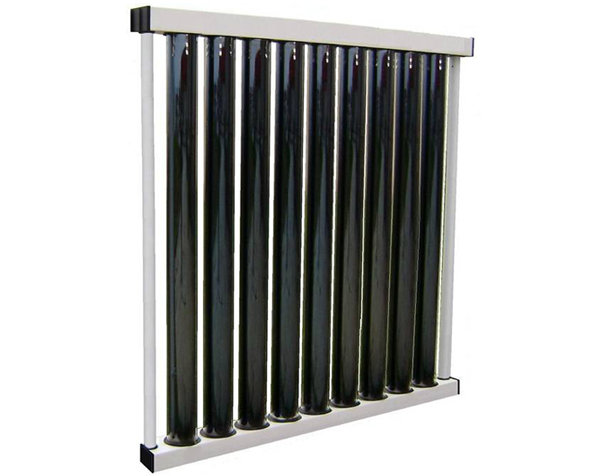

6 Foot Unit

Product Description:

These collector units are designed for domestic hot water and pool applications.  They can be integrated into a fence or simply positioned in the most appropriate location.  This series is capable of heating 90 gallons to 120oF daily.

General Details:

  • Product series: SHP609
  • Dimensions: 71.85” tall, 67.60” long, 9.25” wide
  • Number of collector tubes: 9
  • Storage capacity: 34 gallons
  • Absorber surface: 63 square feet
  • Daily energy output: 45,000 BTU
  • Flow rate: 0.5 – 7 GPM

Technical Specs

Choosing a Model:

There are two different collectors in this series: an end unit (SHP609-E-00) and a middle unit (SHP609-M-00).  The two types are identical except for the water inlet and outlet locations.  Use the following instructions to determine how many of each type to select for an installation involving:

  • 1 collector: When installing a single collector, select an end unit.
  • 2-4 collectors: Up to 4 units can be connected as one continuous series of collectors.  The furthest collector from the water intake must always be an end unit, and the 1-3 collector(s) in between must be middle units.
  • 5+ collectors: After a series of collectors reaches a total of 4 units, start a new series.  Follow the rules above for identifying when to use end and middle units.
